Finding the right JCB 205 operator manual pdf is critical for daily upkeep, and this 266-page factory guide (OEM #9821/6150) covers the complete 135, 150T, 155, 175, 190, 190T, 205, and 205T Skid Steer Loader lineup. Complete walk-around inspection checklists, detailed functional test procedures, and a full section breaking down every dashboard control are all included. Open to the maintenance schedules to find exactly when to service your equipment, complete with fluid capacities and safe operating techniques for handling attachments like shovels and snow blades. Secure the ROPS/FOPS mounting nuts to 205 N-m and double-check that your wheel nuts are locked down at 244 N-m before hitting the dirt. Operator errors cost you downtime. Download this bookmarked file, load it on your tablet in the cab, and run your machine right.
What's Inside This JCB 135–205 Operator Manual
| System | Pages | Key Topics |
|---|---|---|
| Acronyms Glossary | 11-12 | Cesar, DEF, ECU, Esos, Fead, Fops |

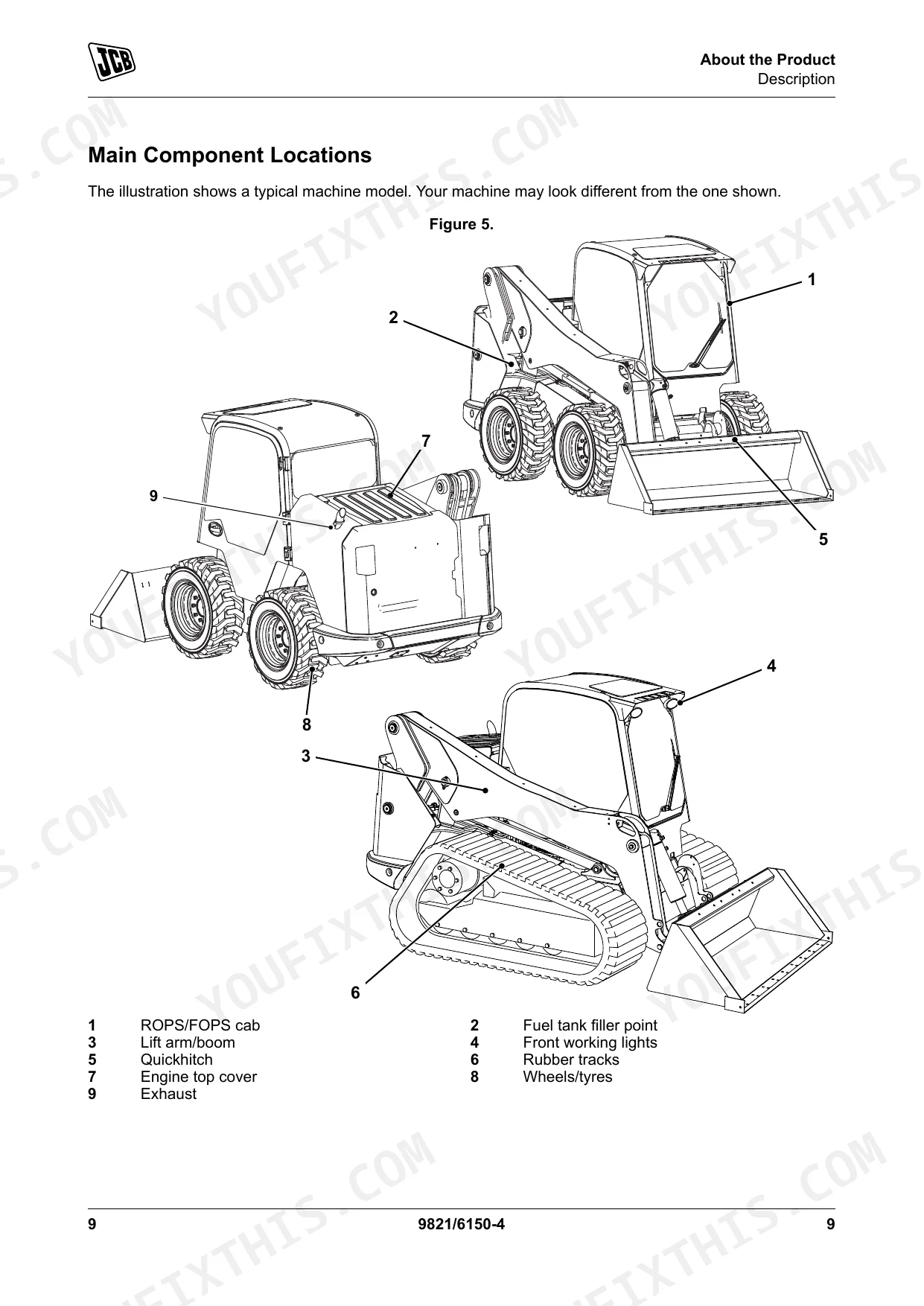

| About the Product | 19-32 | Introduction (General, Name and Address of the Manufacturer, Product Compliance) |

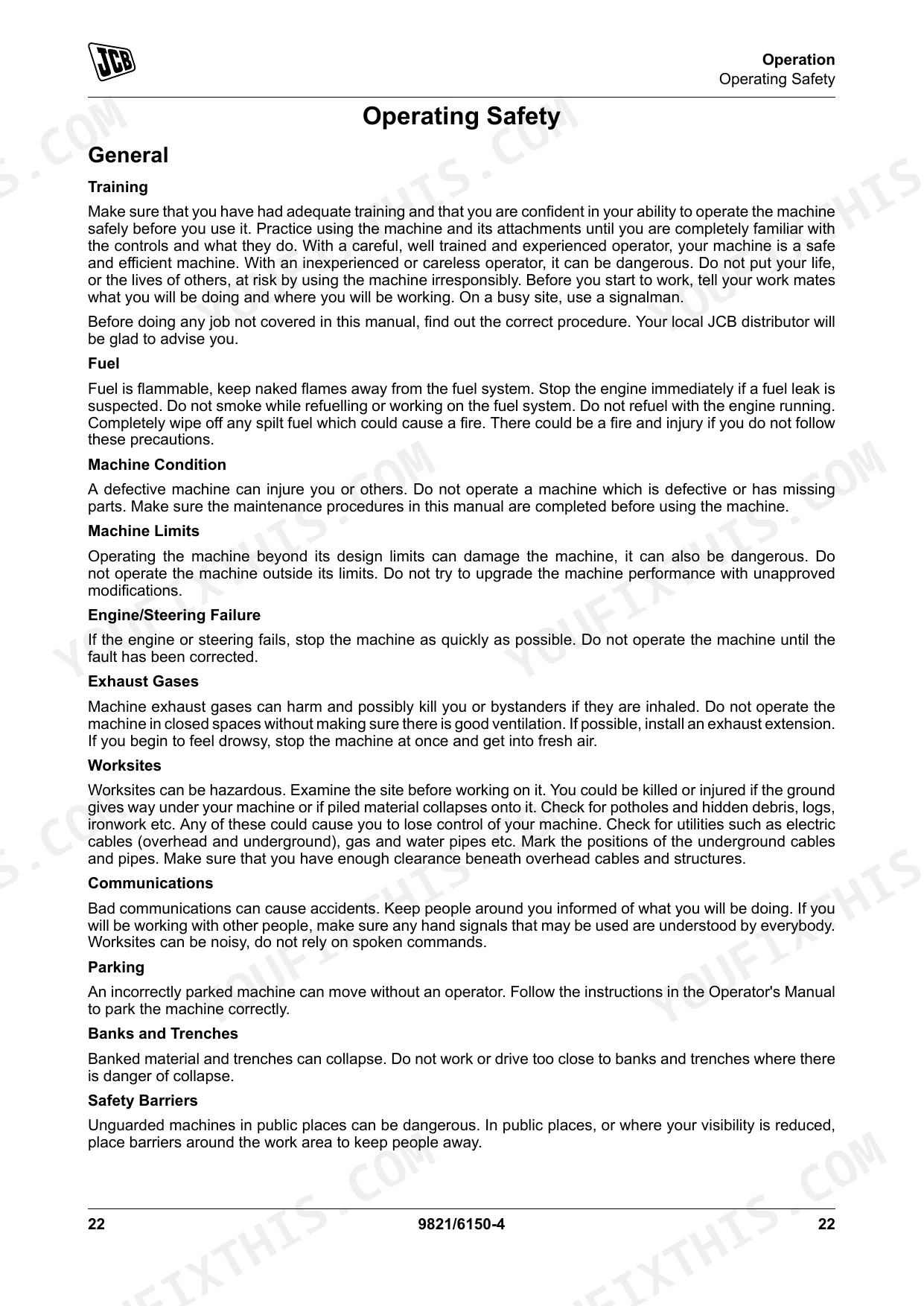

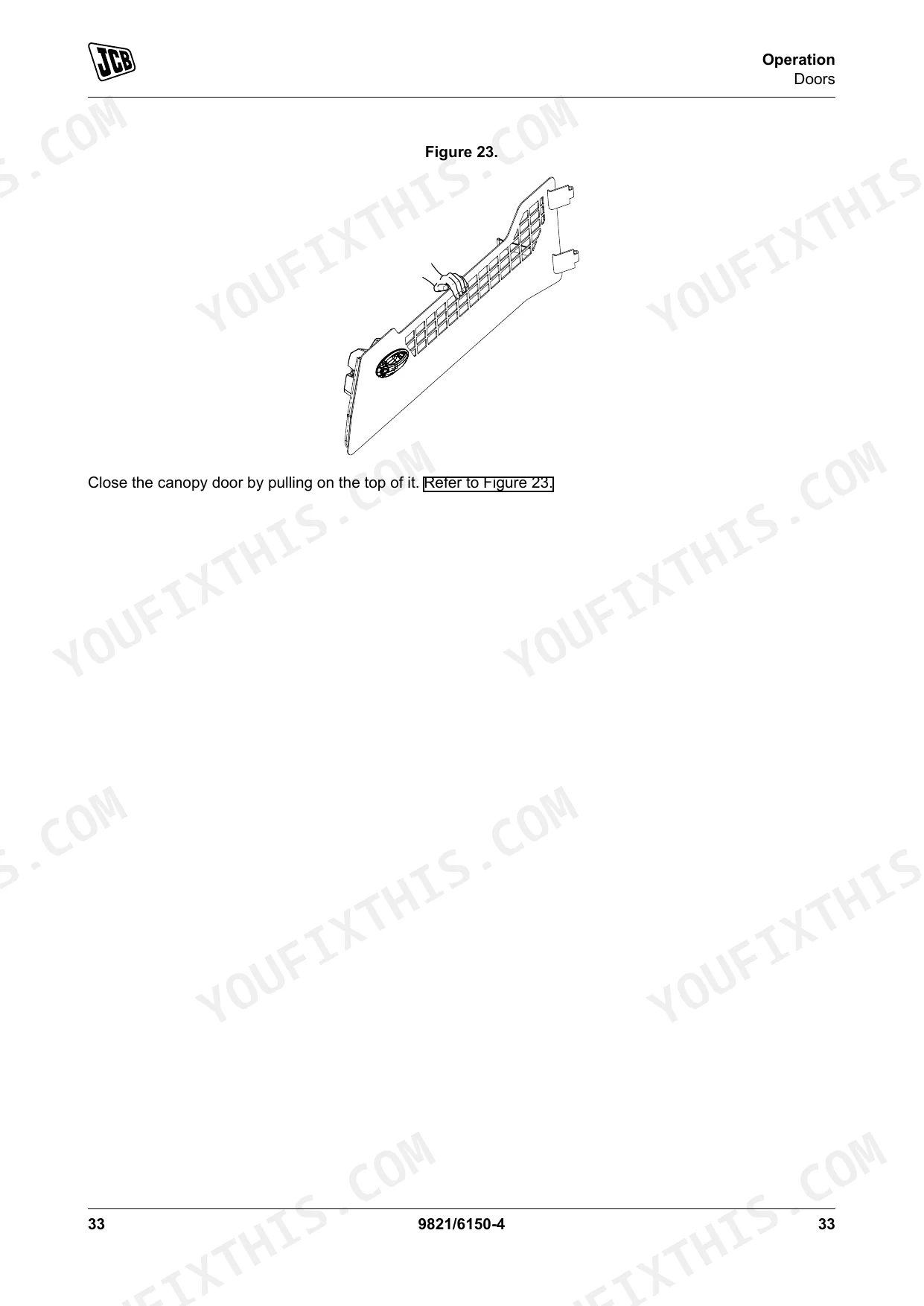

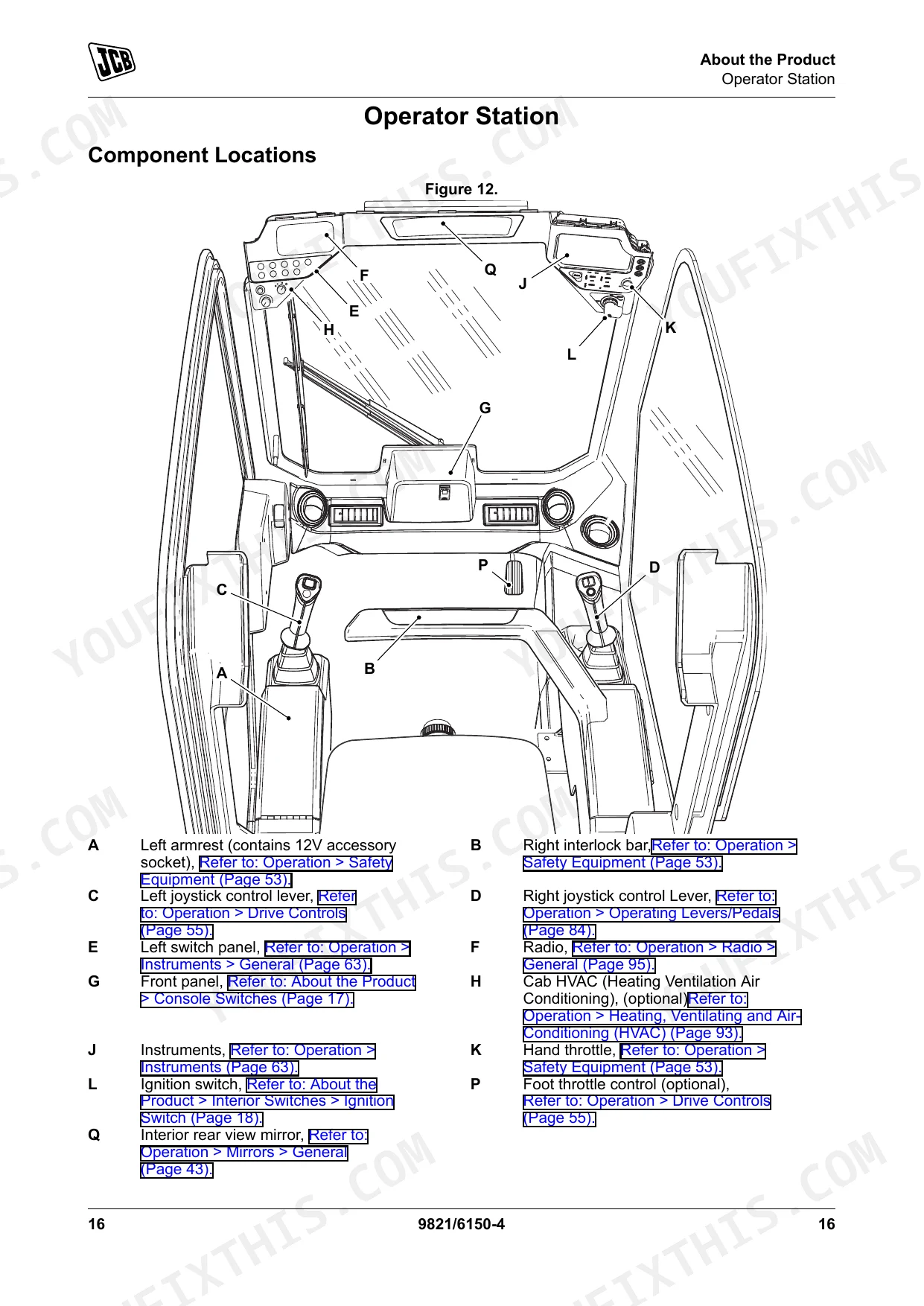

| Operation | 33-124 | Introduction, Operating Safety, Walk-Around Inspection, Entering and Leaving the Operator Station, Doors, Windows, Before Starting the Engine, Operator Seat |

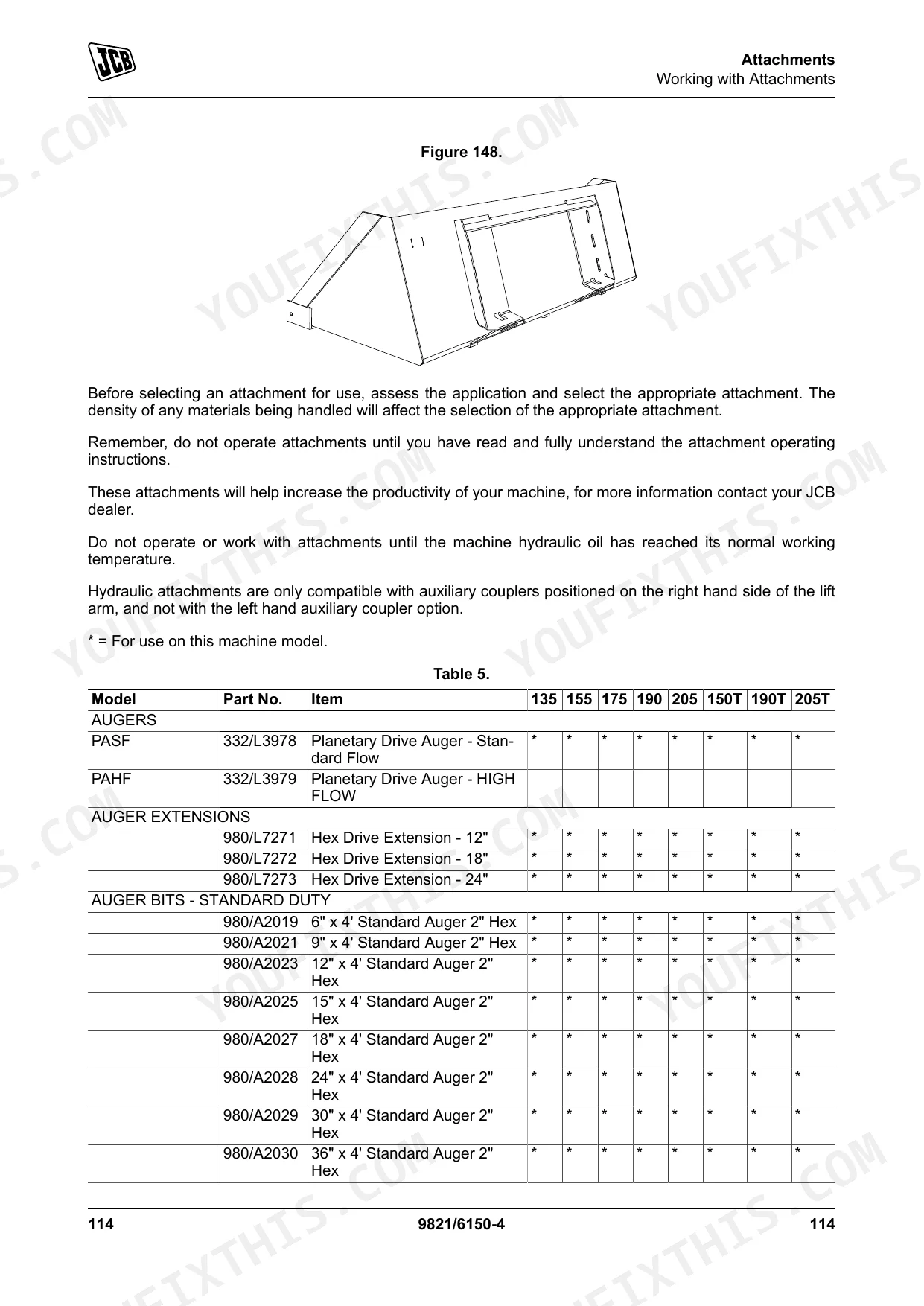

| Attachments | 125-157 | Working with Attachments, Attachment Frame, Quickhitch, Shovels, Forks, Snow Blade |
| Preservation and Storage | 158-164 | Cleaning, Checking for Damage, Storage, Security |
| Maintenance | 165-230 | Introduction, Obtaining Spare Parts, Maintenance Safety, Fluids and Lubricants, Maintenance Schedules, Functional Tests and Final Inspection, Maintenance Positions, Service Points |
| Technical Data | 231-266 | Static Dimensions, Performance Dimensions, Noise Emissions, Vibration Emissions, Fluids, Lubricants and Capacities, Torque Values, Electrical System |
Quick Reference Specifications
| Specification | Value | Page |
|---|---|---|
| 135, 155, 175, 190, 205 | ||
| Wheel nuts torque (Front/Rear) | 244N·m | p. 251 |
| 150T, 190T, 205T | ||
| Track sprocket bolts torque | 368N·m | p. 251 |
| Access plate bolts torque | 140N·m | p. 251 |
| All Models | ||
| ROPS/FOPS Mounting Nuts Torque | 205N·m | p. 251 |
| Lifting Eyes Torque | 190N·m | p. 251 |
| Engine Coolant Capacity | 10L | p. 247 |
| Hydraulic System Tank Capacity | 26L | p. 247 |
| Auxiliary Standard Flow Pressure | 230bar | p. 256 |
| all wheeled models | ||
| Wheel Nuts Torque | 244N·m | p. 251 |
| Tyre Pressure (7 x 15, 14 Ply) | 3.8bar (55psi) | p. 257 |
| 135, 150T, 155, 175 | ||
| Engine Oil Capacity (Min) | 5.5L | p. 247 |
| 190, 190T, 205, 205T | ||
| Engine Oil Capacity (Min) | 7.8L | p. 247 |
JCB 135–205 Common Problems This Manual Covers
JCB 135 hydraulic functions respond slowly, intermittently, or not at all after startup p. 210
Check the troubleshooting procedures. Verify the hydraulic fluid level is adequate for the 26L system capacity. Inspect all hoses and fittings for visible leaks. Test the auxiliary standard flow pressure to ensure it meets the 230bar specification.
Manual Section: MaintenanceMachine starts but joystick controls are sluggish or behave unpredictably during standard jobsite operation p. 257
Inspect the electrical circuits for damaged connectors or missing insulation. Verify the safety switches are functioning properly. Check the tyre pressure on wheeled models to ensure it meets the 3.8bar (55psi) specification on page 257. Torque wheel nuts to 244N·m.
Manual Section: Technical DataHigh-flow attachment operation is unreliable or acts erratically when running standard grapples p. 100
Verify the attachment setup matches the guidelines in Operation > Operating Levers/Pedals > High Flow Operation (Option) on pages 100-101. Check the auxiliary standard flow pressure to confirm it maintains 230bar during operation as per Maintenance > Hydraulic System > Auxiliary Circuits on page 256.
Manual Section: AttachmentsTracked machine pulls to one side or vibrates excessively during standard travel p. 258
Measure the track sag to confirm it meets the minimum track tension of 25mm specified on page 258. Adjust the tension if necessary. Inspect the undercarriage components for packed debris or visible damage.
Manual Section: Technical DataFrequently Asked Questions
How to reset JCB 155 service light?
To reset the service light on a JCB 155, which displays the time to the next service, press and hold the information switch for 3 seconds. This action will reset the service display.
How to reset JCB 205 warning light?
To cancel the alarm associated with a warning light on a JCB 205, set the ignition switch to position '0'. The problem indicated by the warning light should then be rectified.
What are the replacement specifications for Hydraulic hoses?
When replacing damaged hydraulic hoses, the new hoses must be of the same size and standard as the original ones. It is crucial to replace damaged hoses before operating the machine again.
How do you fix JCB 135 hydraulic functions respond slowly, intermittently, or not at all after startup?
Check the troubleshooting procedures. Verify the hydraulic fluid level is adequate for the 26L system capacity. Inspect all hoses and fittings for visible leaks. Test the auxiliary standard flow pressure to ensure it meets the 230bar specification.
How quickly can I access this manual after buying?
A 266-page Operator Manual in searchable PDF format, available the moment you complete checkout. View on computer, tablet, or phone, with no shipping wait.
Is this JCB 135 & variants Operator Manual printable?
The PDF is DRM-free. Print whatever sections you need to take out to the shop. Standard letter or A4 paper works.
Document Quality
This document is a native digital PDF, allowing you to search and copy the full text. The text throughout the manual is crisp and easy to read. Diagrams and illustrations are a mix of sharp vector graphics and clear raster images, with all labels remaining readable. The pages are clean, with no scan artifacts, stains, marks, or skewed content. There are a few blank "Notes" pages interspersed, which serve as filler.
