Part of the John Deere Repair Manuals.
This 606-page John Deere PowerTech 4.5L and 6.8L Diesel Engines Technical Manual (OEM #CTM104) walks you through a full rebuild of both engine families, from teardown to final assembly. Inside: a complete engine disassembly and assembly sequence, sealant application guidelines, a theory of operation section covering lubrication and cooling system function, and an observable diagnostics section built around real symptom codes like L1 excessive oil consumption and C1 coolant temperature above normal. You also get the specifications group with unified inch and metric bolt and screw torque values, plus the essential and service tool lists for cylinder head, valve, and injector work on both 2-valve and 4-valve HPCR heads. No more flipping between three dog-eared references while your engine sits half-torn-down on the stand. This PDF is bookmarked by group and fully text-searchable, so you can jump straight from cover to torque table without hunting.
What's Inside This John Deere 4.5L, 6.8L, PowerTech 4.5L & 6.8L Diesel Engines Manual

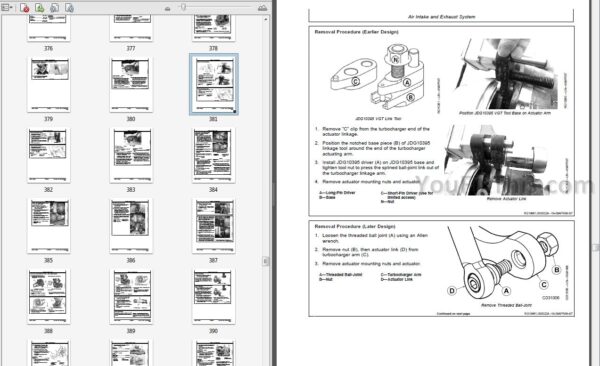

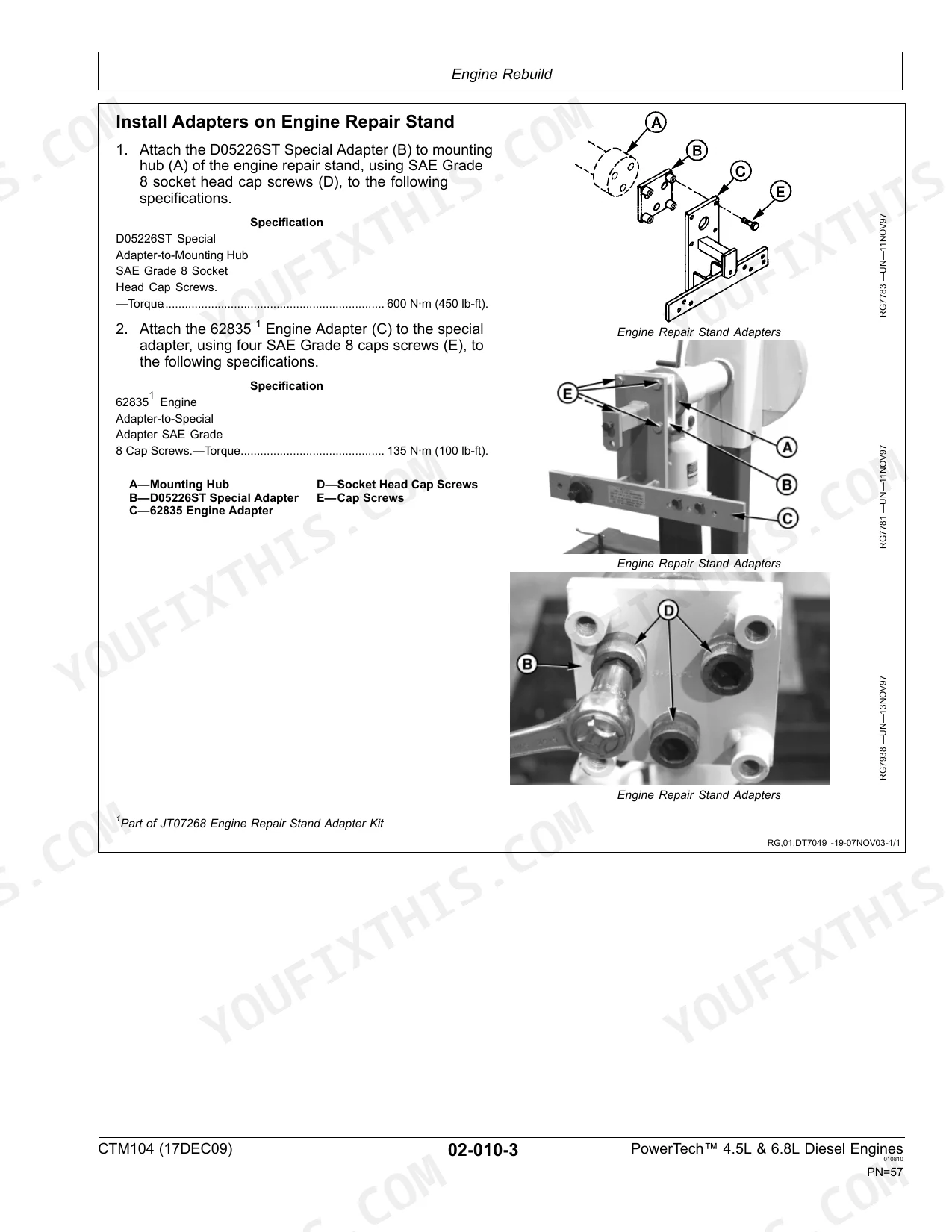

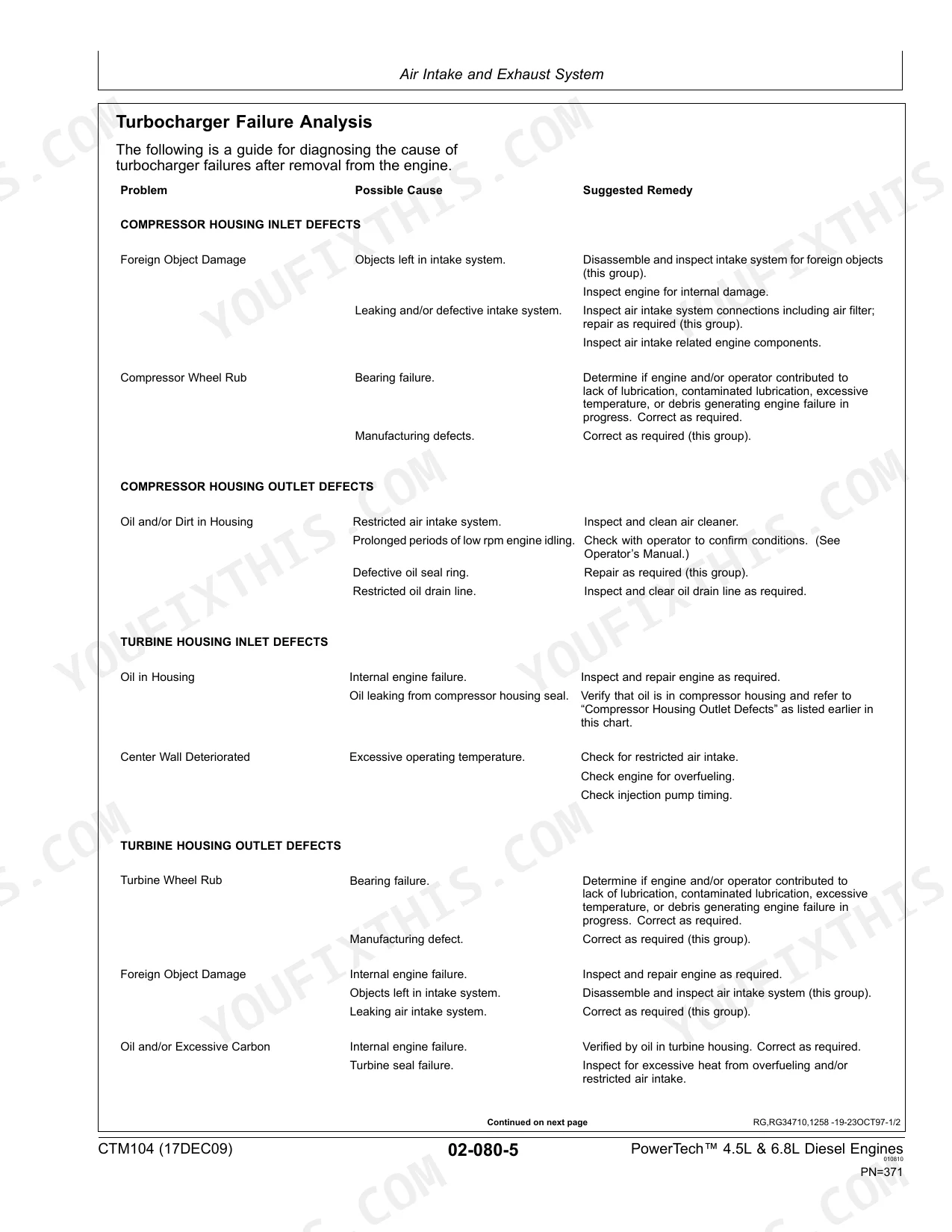

| System | Pages | Key Topics |
|---|---|---|
| General Information | 15-52 | Group 000, Safety, Work in Ventilated Area, Recognize Safety Information, Work in Clean Area, Dispose of Waste Properly, Avoid Harmful Asbestos Dust, Handle Fuel Safely |
| Repair and Adjustments | 53-408 | Group 010 - Cylinder Head & Valves, Cylinder Block/Liners/Pistons, Crankshaft & Main Bearings, Camshaft & Timing Gear Train, Lubrication System, Cooling System, Fuel Injection & Air Intake, Turbocharger |
| Theory of Operation | 409-426 | Group 120, Base Engine Operation (Base Engine Theory of Operation, Lubrication System Operation, Cooling System Operation) |
| Diagnostics | 427-454 | Group 150 |
| Tools and Other Materials | 455-510 | Group 170 |

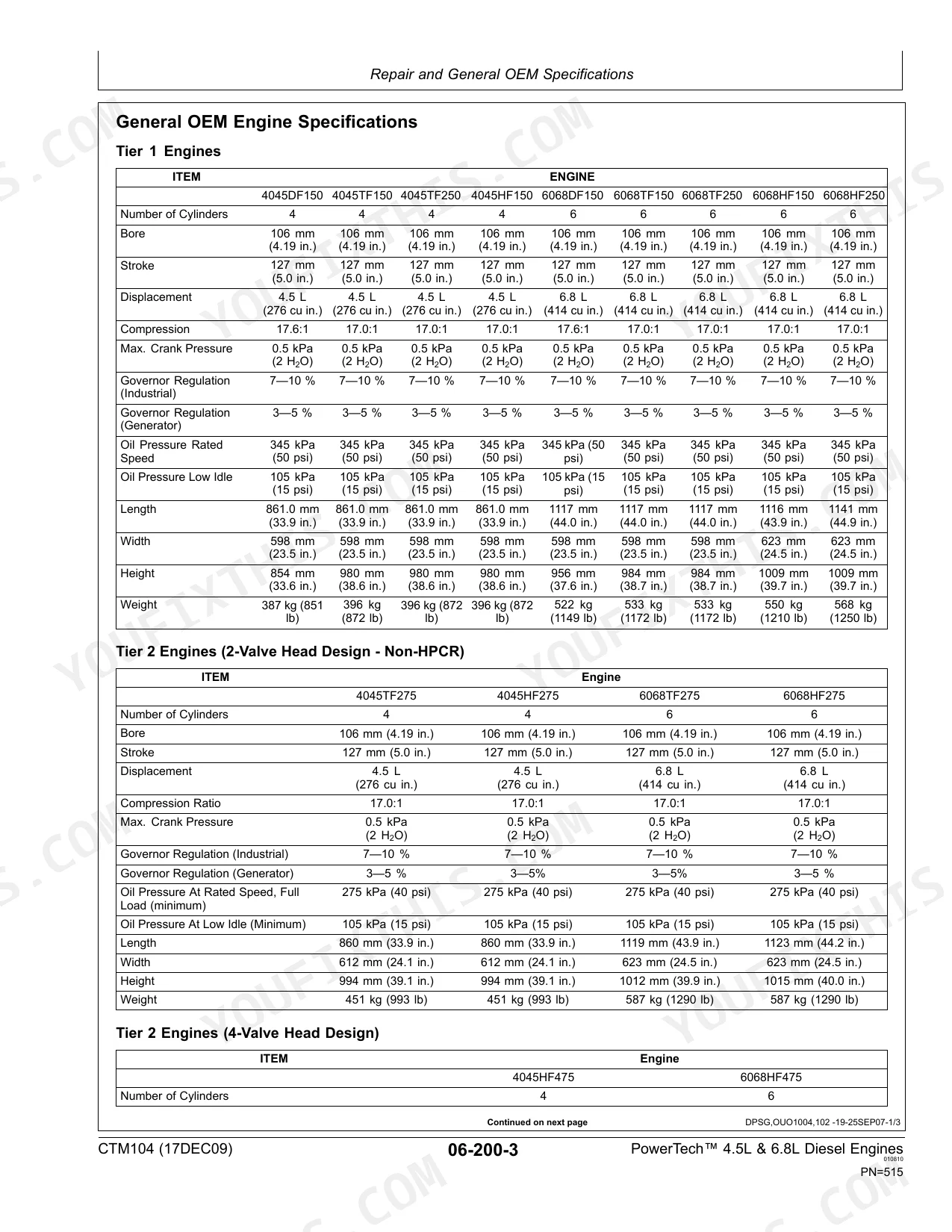

| Specifications | 511-606 | Group 200, Repair and General OEM Specifications (Unified Inch Bolt and Screw Torque Values, Metric Bolt and Screw Torque Values) |
John Deere 4.5L, 6.8L, PowerTech 4.5L & 6.8L Diesel Engines Common Problems This Manual Covers
John Deere PowerTech 6.8L engine loses power under load or stalls completely with clean-looking fuel filters
Start with the troubleshooting procedures for fuel starvation faults. Check the supply pump for weak output and pull both primary and secondary filters even if they look clean, since fine plugging restricts flow before it's visible. Bleed the low-pressure side fully before restarting, then load-test to confirm the stall is gone.
Manual Section: Repair and Adjustments: Troubleshooting ProceduresOil is diluted with fuel or shows heavy sludge buildup between changes
Pull a dipstick sample and smell for raw diesel; if present, suspect injector seal leakage or a failing fuel supply pump diaphragm pushing fuel past the pump into the crankcase. Follow the troubleshooting procedures to isolate the leak path, then pressure-test the low-pressure fuel circuit before condemning injectors. Change the oil and filter immediately regardless of interval to protect bearings.
Manual Section: Repair and Adjustments: Troubleshooting ProceduresPremature misfire or rough running on Tier 3 models tied to EGR valve sticking open
Inspect the EGR valve for carbon buildup preventing full closure, a common failure point on Tier 3 PowerTech Plus configurations. Remove the valve and manually work the pintle to check for binding, then clean the passage and seat before reinstalling. Verify the actuator returns to closed at idle and recheck for smooth running under load per the troubleshooting procedures.
Manual Section: Repair and Adjustments: Troubleshooting ProceduresEngine shuts down right after starting or will only run on starting fluid
This points to air trapped in the low-pressure fuel circuit or a supply pump that isn't building enough pressure to keep the injection pump fed. Loosen the bleed screw at the filter head and crank in short bursts until fuel runs solid with no bubbles, following the service procedures. Verify all fittings on the suction side are tight, since a pinhole air leak there will re-introduce air after every shutdown.
Manual Section: Repair and Adjustments: Service ProceduresLow oil pressure warning appears shortly after a fuel-related repair

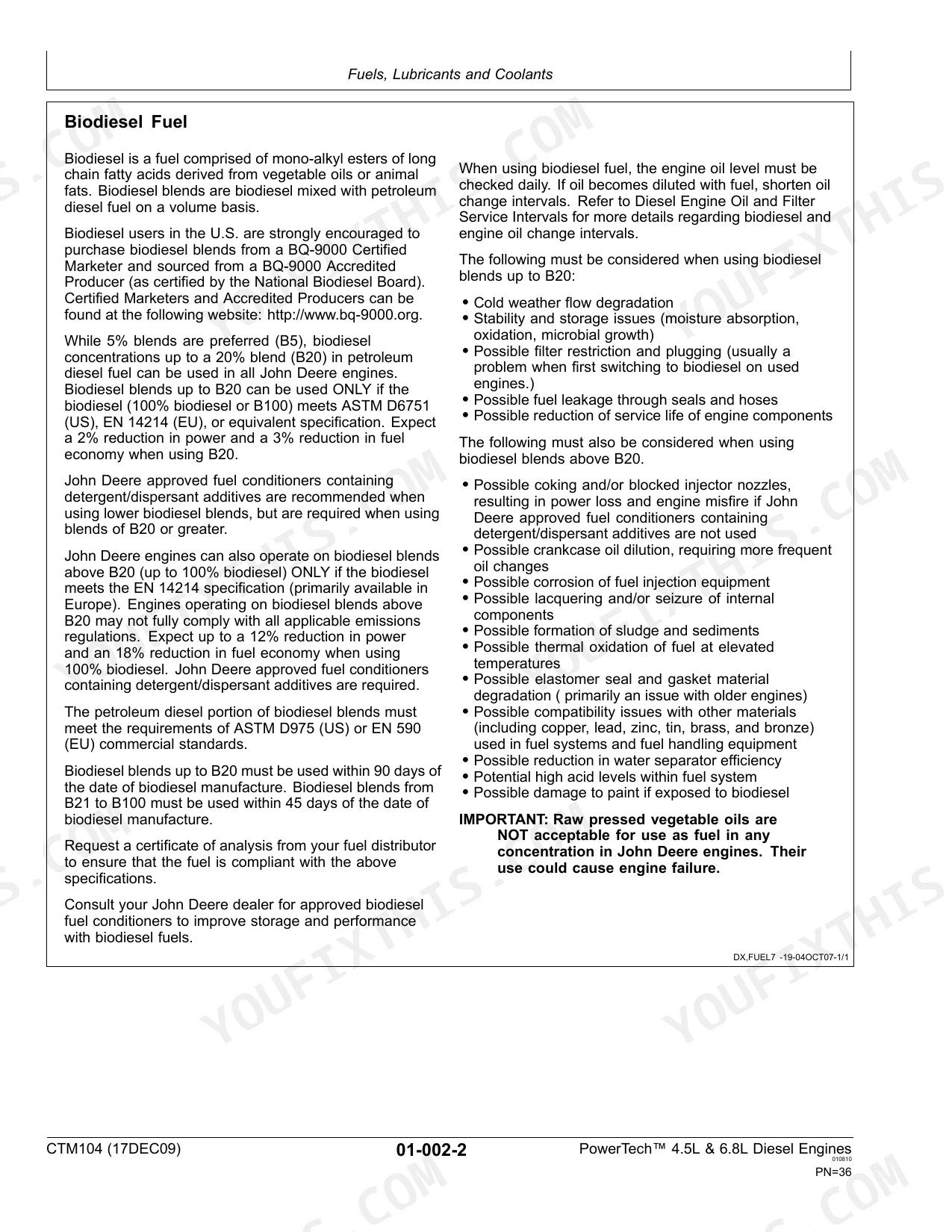

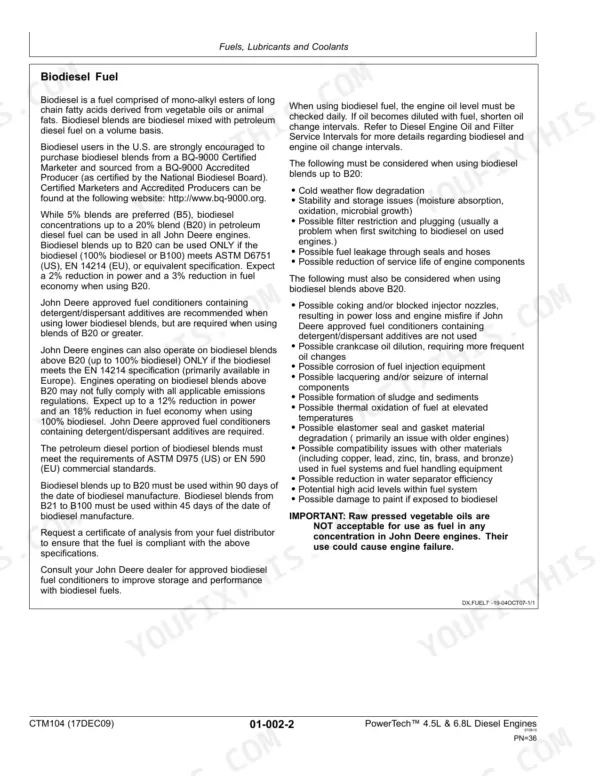

Confirm this isn't residual fuel dilution thinning the oil rather than a true mechanical pressure fault. Drain and refill with the correct oil per the maintenance schedule on page 36, then run the engine and recheck pressure at operating temperature. If pressure stays low after a clean oil change, move to the base engine testing procedures to rule out a worn oil pump or bearings.
Manual Section: General Information: Maintenance Schedule p. 36Coolant temperature reads abnormally high with no visible external leaks
Forum reports on 6.8L installs point to ECU sensor drift causing false high-temp readings as much as actual overheating, so verify the coolant temp sensor signal before chasing the cooling system. Check coolant level and cap condition per the service procedures, and inspect the radiator and shroud for airflow restriction. Replace the sensor if readings don't match a manual temperature check at the thermostat housing.
Manual Section: Repair and Adjustments: Service ProceduresFrequently Asked Questions
How to recalibrate John Deere EGR valve after repair?
After EGR valve repair or replacement, recalibrate the valve using Service Advisor™. For new EGR valves, use the EXHAUST GAS RECIRCULATION VALVE RECALIBRATION tab, and for reused EGR valves, use the HARNESS DIAGNOSTIC MODE TEST tab.
